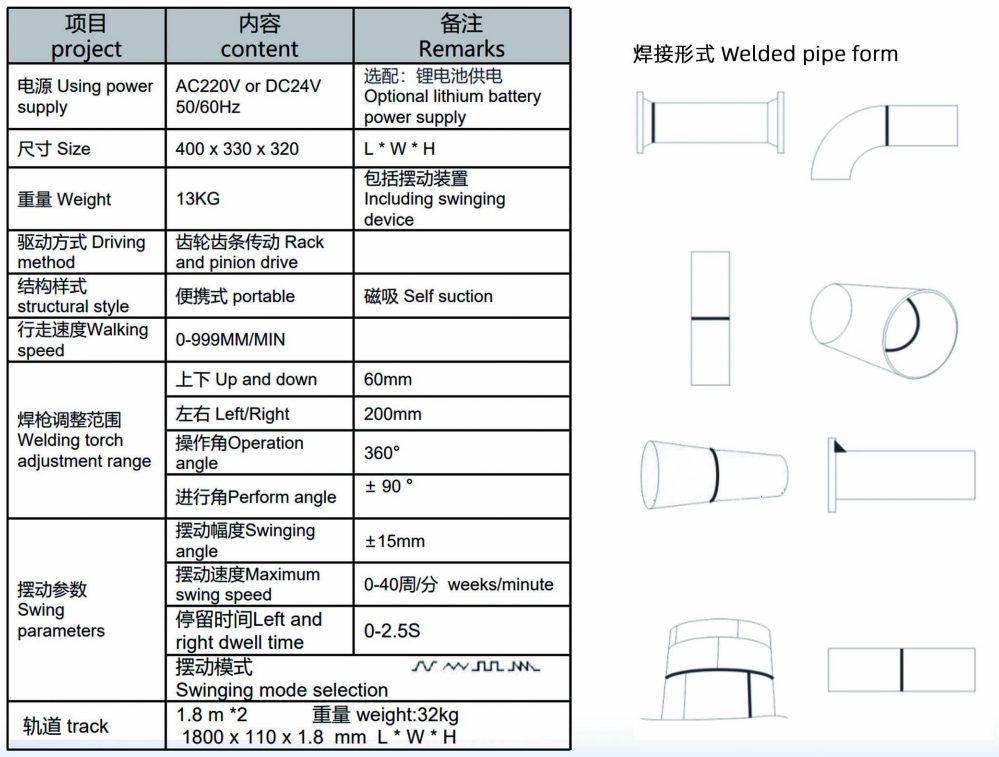

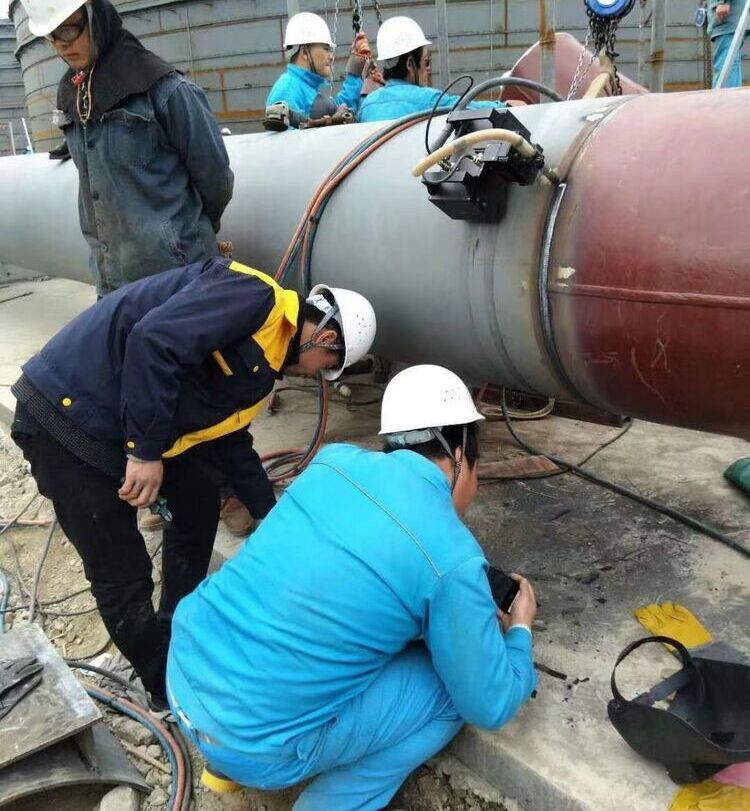

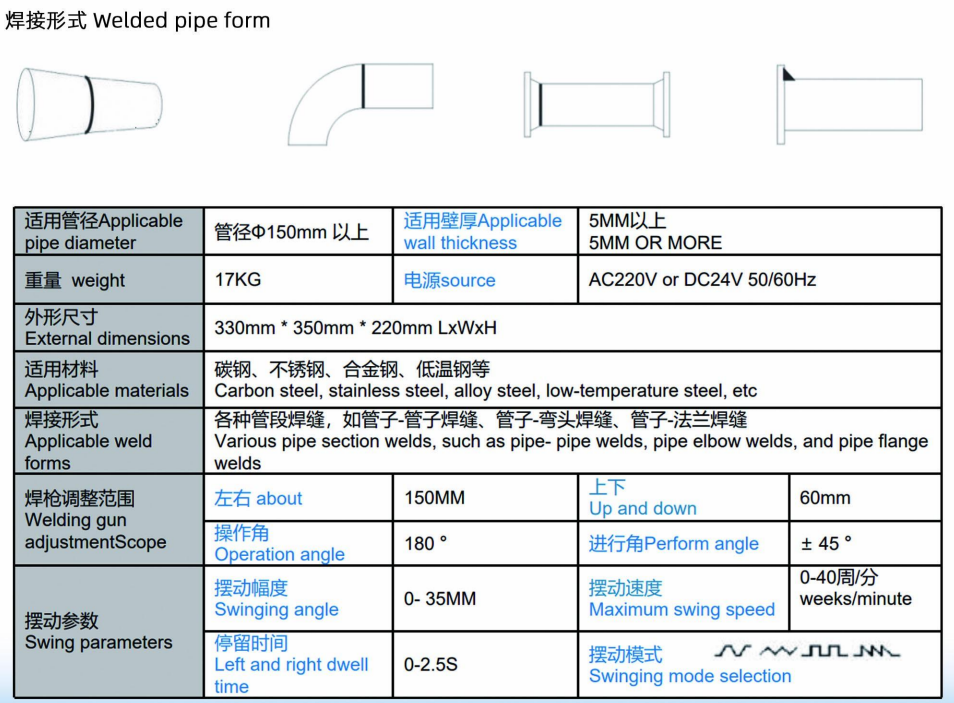

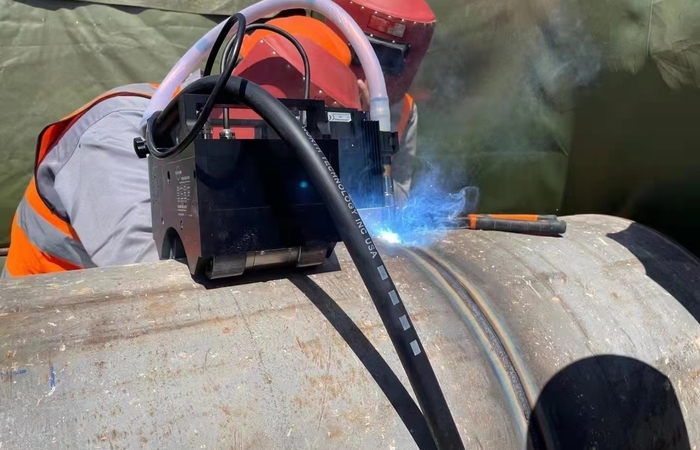

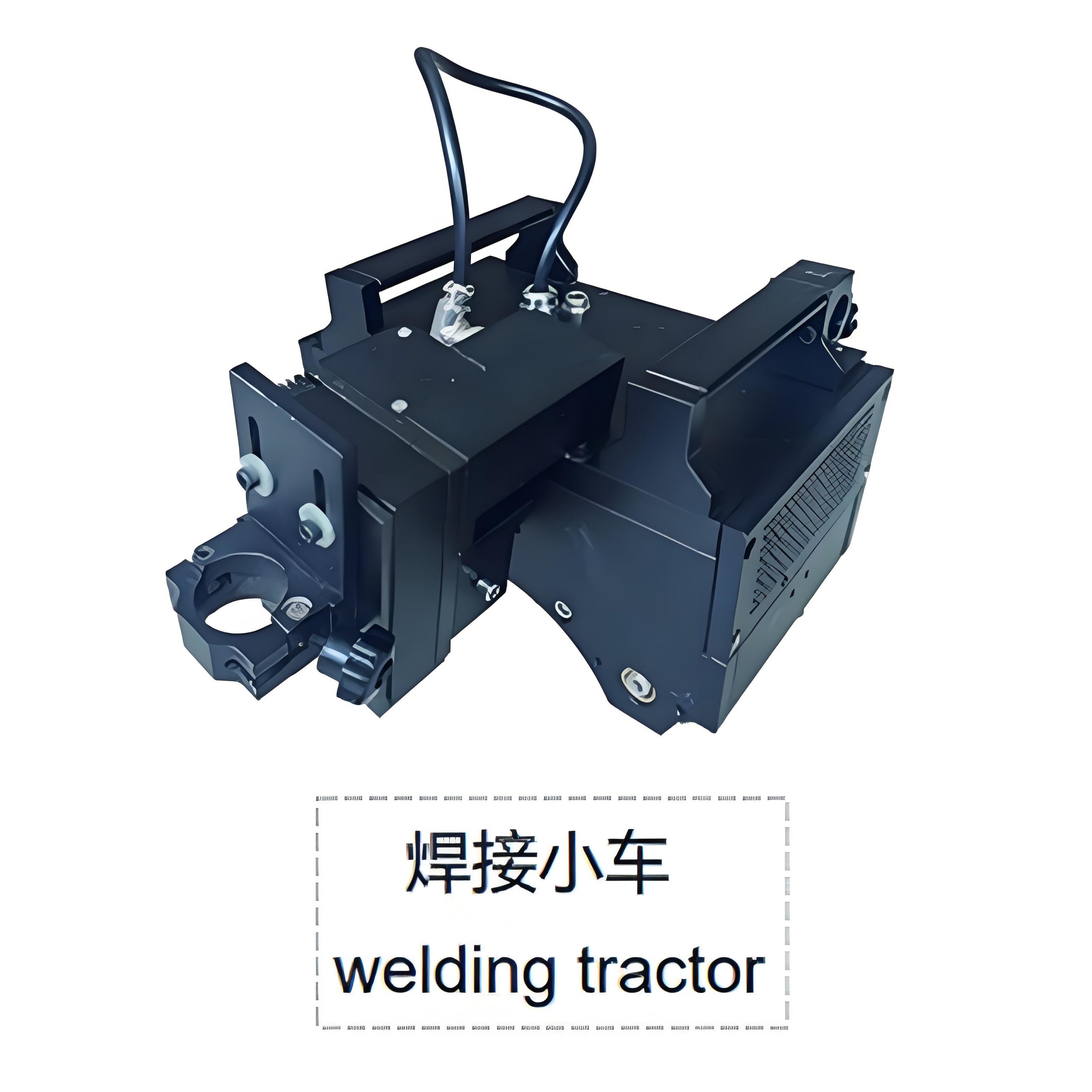

The pipe fixation and welded car walk through the way to achieve automatic welding (5G welding) in the pipeline. The welding process uses high -efficiency, low -cost carbon dioxide gas or hybrid gas protection (80%milogenic+20%carbon dioxide). Advantages of full -position pipeline welding: wireless remote control, program can be preset or at any time, the welding parameters can be set at any time, and the parameters are stored for later calls. Automatically identify the welding position during welding. The equipment itself has a orientation sensor, which can automatically identify the welding angle. The machine can match the appropriate current voltage and walk or swing parameters according to different positions at 1 and 12 points. easy to use. 1. Applicable work conditions: various long -volume pipelines, thermal pipelines, buried land pipes or craft pipelines and other on -site welding ports. 2. Welding material: carbon steel, stainless steel, alloy steel, low -temperature steel, etc. 3.Applicable welds: Pipe diameter can be more than 15o mm or more, and the wall thickness is greater than 5 mm. It can be applicable. Thick wall tube can use multi -layer and multi -channel welding. 4. Welded car: The design is light and easy to carry, and the permanent magnet adsorption is especially suitable for welding the entire pipeline at the construction site. 5. Wireless remote control: Wireless remote control preset welding parameters. In the welding work, it can be fine -tuned in real time according to the working conditions. The operation is simple and the labor intensity is low. 6. Welding efficiency: Fast speed, high production efficiency, and handmade arc welding can be increased by about 3-4 times.

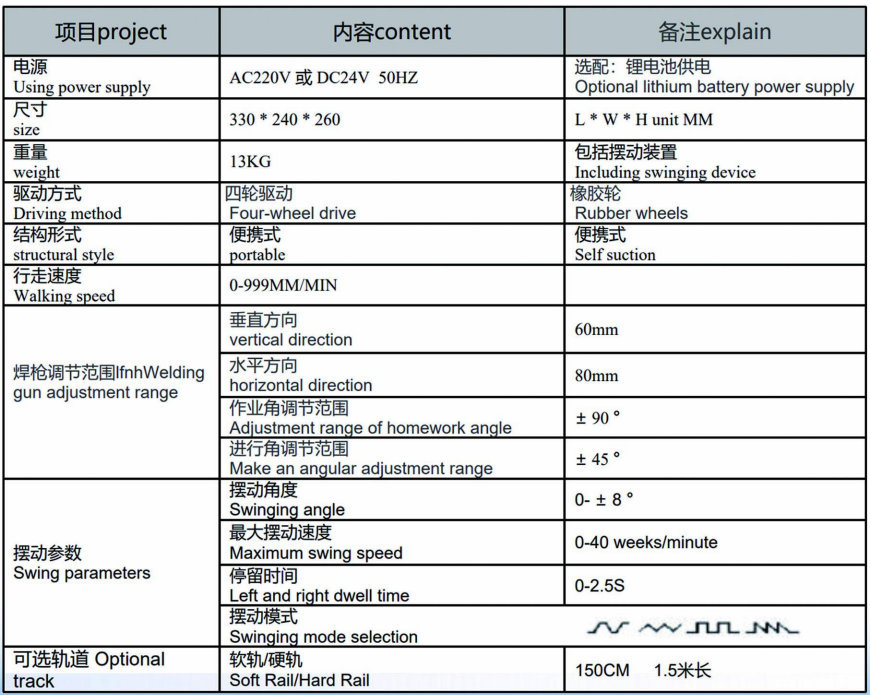

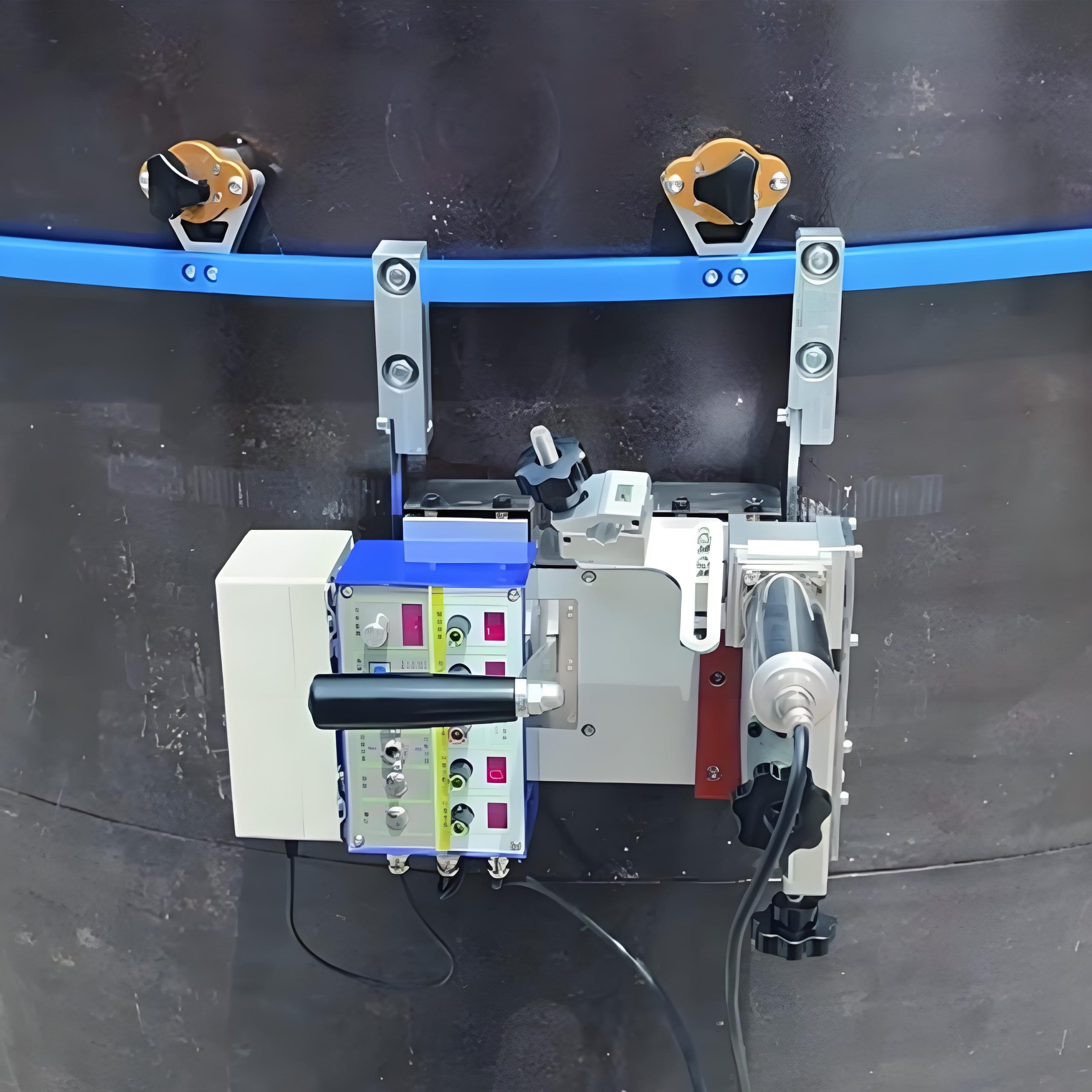

1. This welding car is a multi -function welding machine that should be welded in the plane corner, vertical angle welding, flat docking standing docking and supers truc- ture. 2. The swing speed, swing range, center position, and left and right stays can be adjusted, suitable for various specifications of welding channels. 3.Small volume, light weight, convenient installation, non -skilled workers can also be welded. 4. Install a permanent magnet. Welding lines can be avoided when welding. 5.Configure soft and hard orbit can satisfy vertical walking, side -in -side walking, curved walking and welding.

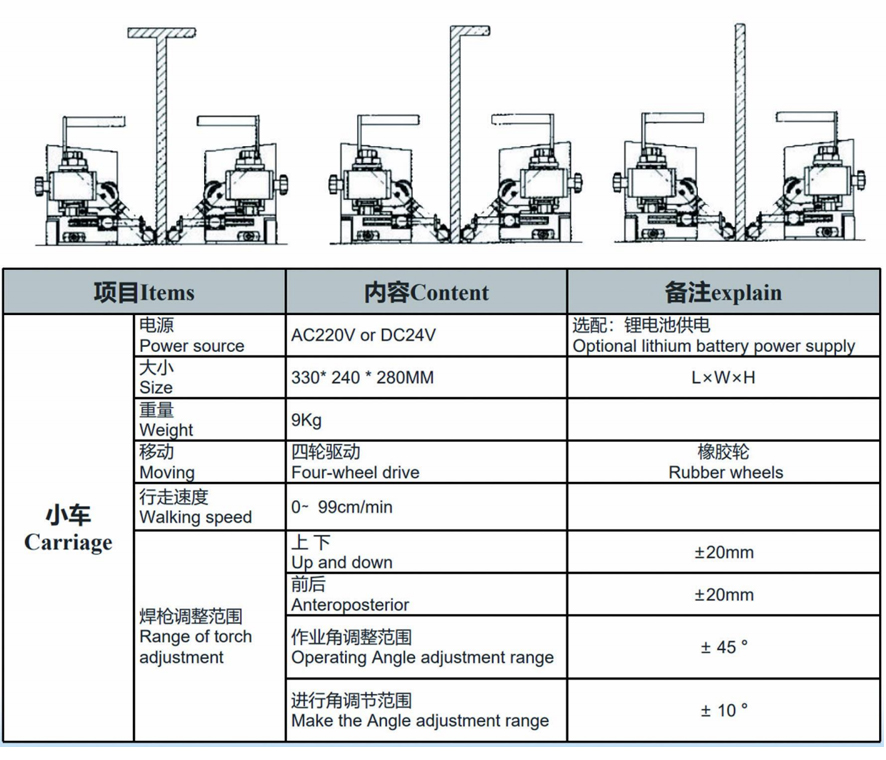

1. FY-6SS-II is a single-sided double-gun horizontal fillet weldingautomatic device. 2. Two welding guns are installed at a certain distance,with thefunction of welding gun selection, which can beused for single-gunwelding or dual-gun welding at the same time. when welding thickworkpieces, dual-gun welding is selected at the same time, which isefficient and economical, and workers can operate multiple de-vices atthe same time. 3.A guide mechanism is installed to avoid the welding gun andwelding line from separating during welding. 4.Easy to move and operate, even unskilled workers can operate it.

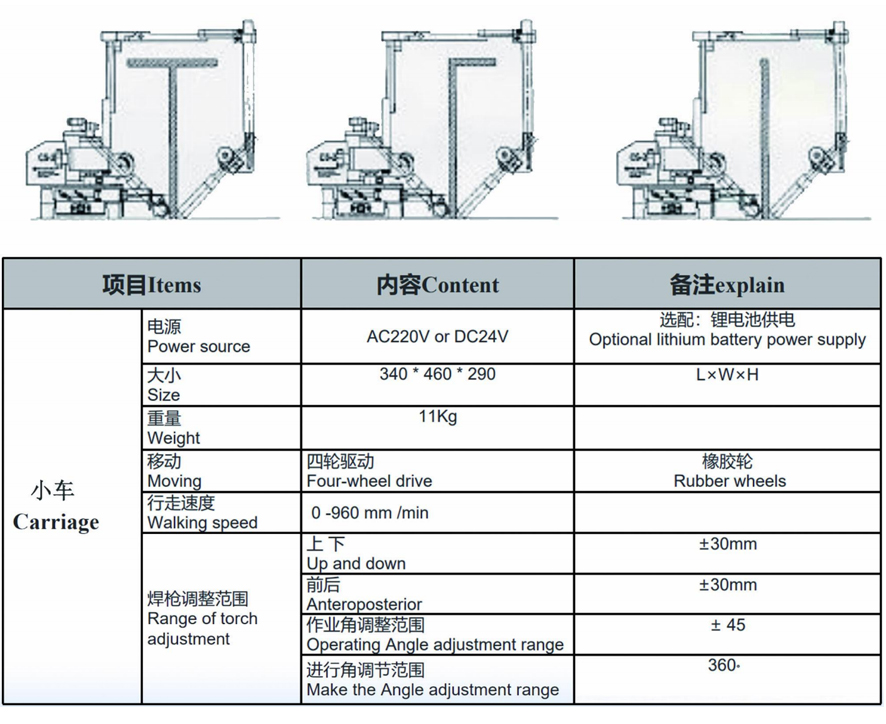

(1)One machine holds two welding guns and performs double.sided fillet welding in one pass (2)with limit stop function, multiple units can be oper-atedsimultaneously (3)Suitable for welding l-beams, stiffener plates, and T-beam work pieces (4)when welding on both sides simultaneously, defor-mationca used by general single-sided welding can be avoided. (5)Easy to move and operate, even unskilled workers can perform welding

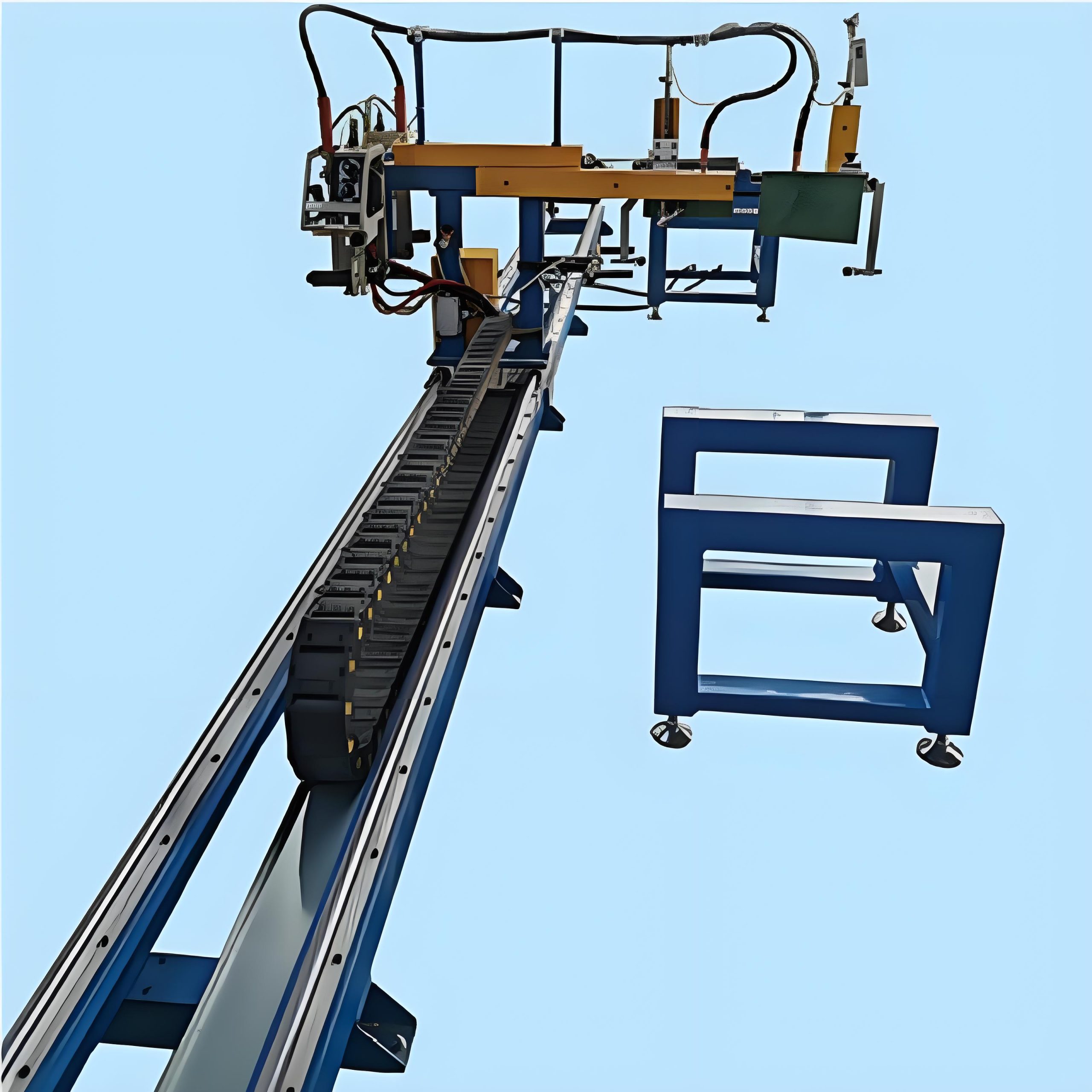

Product Overview: Both sides of the steel beam can be welded simultaneously, and the welding route can be automatically adjusted according to needs. Main applications: a) Welding of irregular steel beams b) Welding of curved steel beams. Product features: a) Simultaneous welding on both sides, high efficiency; b) Easy to operate, just start pausing without any further action required; c) Widely applicable, can weld steel beams of different radii and shapes; d) The welding gun adjusts itself according to the welding seam route, perfectly solving the problem of inconsistent work pieces; e) Good weld quality and beautiful weld appearance; Equipment dimensions: (length x width x height) 8 meters x 1.6 meters x 1.4 meters Equipment working range: a) Welding length of 7 meters Welding width range of 70-500 b) Example diagram description of welding work piece requirements

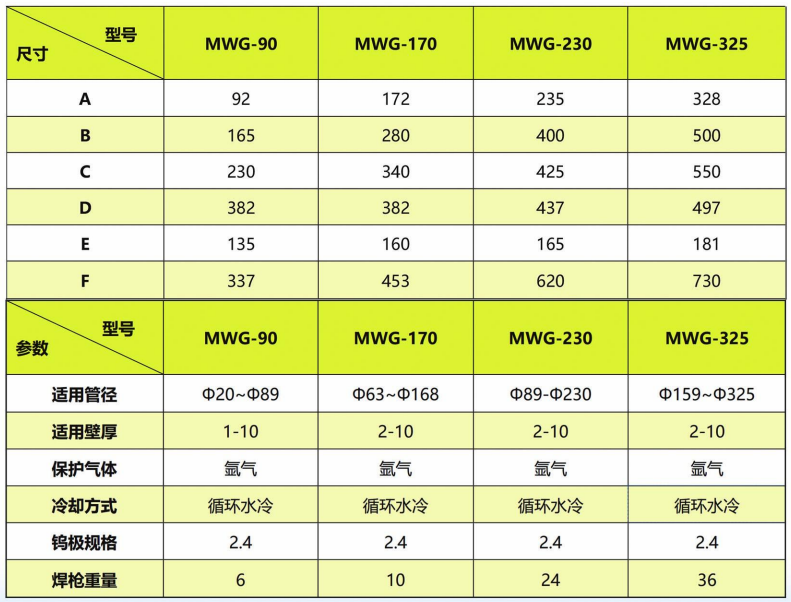

-The equipment adopts a standard modular design, with easy replacement of spare parts and low operating costs; -Speed feedback function, which can monitor and control the rotation speed of the welding gun in real time, making its rotation more accurate and stable; -Automatic arc length and lateral swing function can meet the welding requirements of different sizes of pipe fittings, with better process adaptability; -Welding gun circulating water cooling, high temporary load rate, stable and reliable long-term continuous operation without heating; -Under the same conditions, for different pipe diameters, only the pipe diameter size needs to be entered, and there is no need to readjust the welding parameters to weld; -The welding gun adopts an open clamping design, which is easy to operate. It is equipped with a Harvard fixture and can be adjusted according to the diameter of the pipe fittings.

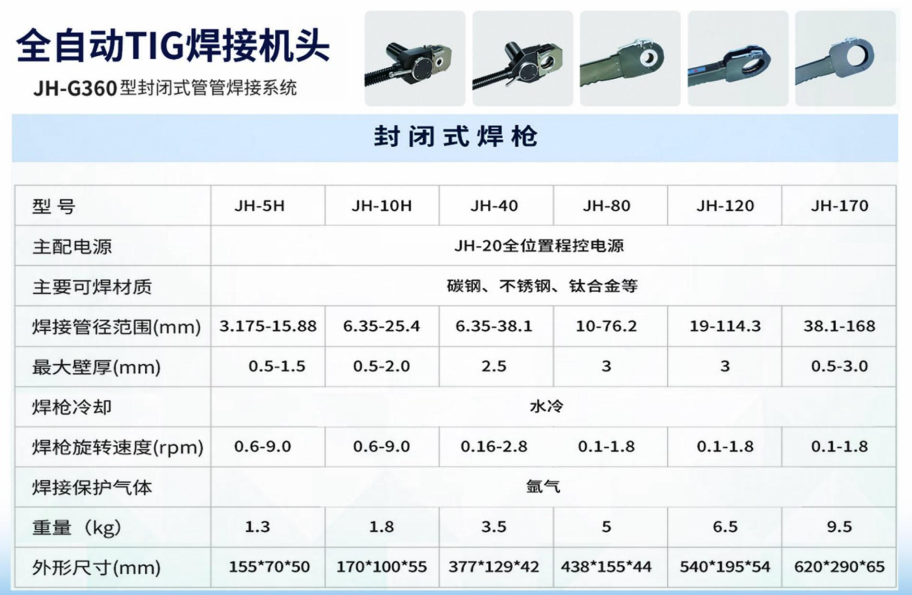

-The entire body of the welding gun is water-cooled, effectively improving the temporary load rate of the welding gun and extending its lifespan; -Four channels of argon gas protection are used inside the welding gun cavity to improve the quality of the weld and make it more aesthetically pleasing; -Equipped with speed feedback function, making the rotation of the welding gun more precise and stable, and real-time monitoring of the weld angle; -With expert parameters, welding parameters can be automatically generated by inputting the pipe diameter and wall thickness, and welding can be carried out; -The overall welding gun is made of fully imported materials,lightweight, and easy to learn with one click operation; -The welding gun adopts flexible fixtures, which can be fine tuned according to the tolerance range of domestic pipe fittings; -Multiple types of clamps are specific and flexible to meet the positioning requirements of pipe fittings, supporting customization of irregular fixtures.

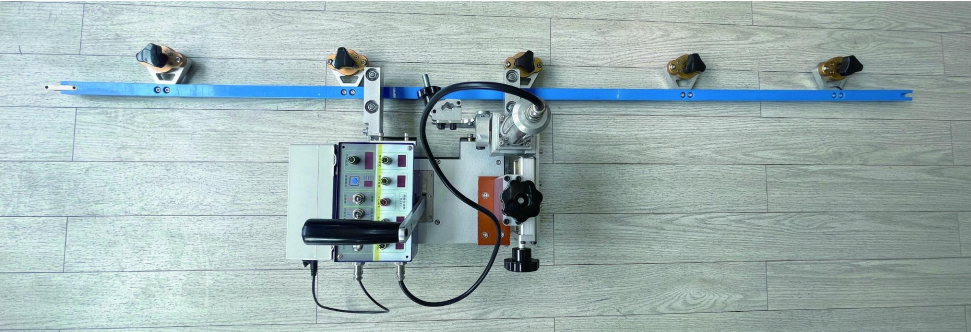

FY-QB-09 flexible rail welding car is a welding equipment driving the rail walking by gear rack. It is widely used in large tanks and pipeline seam welding. By adjusting the position and angle of the welding gun, corner welding, horizontal welding and superstructure can also be per-formed. The car body, swinging device, and control panel are split, which can be welded on the track. The track is sucking on the work piece with powerful magnets, and it is convenient to install and disassemble. It has a straight line swing function. Various swing parameters such as swing mode, swinging amplitude, swing speed, swing center po-sition and left and right stay time can be adjusted.

1. FY-6SS-II is a single-sided double-gun horizontal fillet weldingautomatic device. 2. Two welding guns are installed at a certain distance,with thefunction of welding gun selection, which can beused for single-gunwelding or dual-gun welding at the same time. when welding thickworkpieces, dual-gun welding is selected at the same time, which isefficient and economical, and workers can operate multiple de-vices atthe same time. 3.A guide mechanism is installed to avoid the welding gun andwelding line from separating during welding. 4.Easy to move and operate, even unskilled workers can operate it.

(1)One machine holds two welding guns and performs double.sided fillet welding in one pass (2)with limit stop function, multiple units can be oper-atedsimultaneously (3)Suitable for welding l-beams, stiffener plates, and T-beam work pieces (4)when welding on both sides simultaneously, defor-mationca used by general single-sided welding can be avoided. (5)Easy to move and operate, even unskilled workers can perform welding

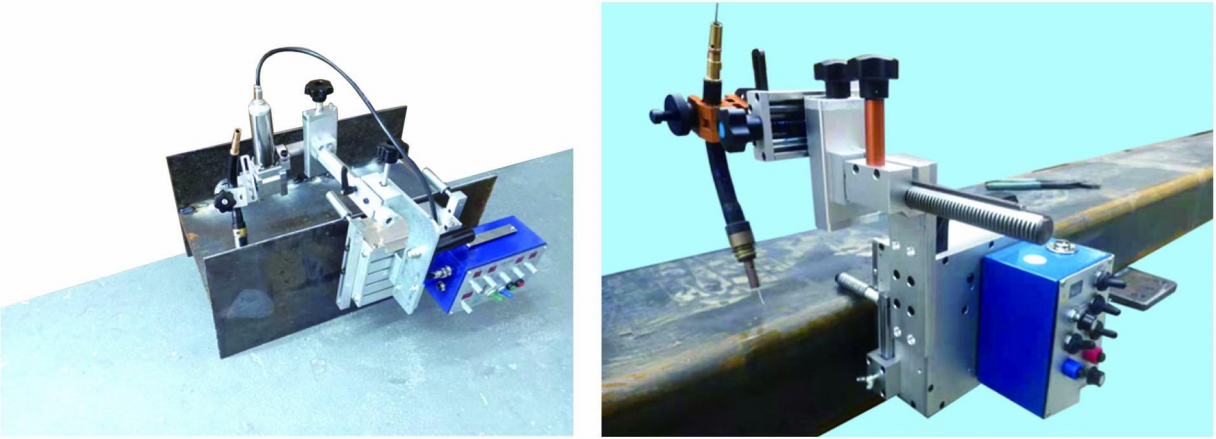

The unique riding clamping method is particularly suitable for welding with narrow gaps and low work piece heights, such as shipbuilding hatch cover sliding tracks, blockingiron and other low standing plates, small-sized ball flat steel, etc. Double gun simultaneous welding, with built-in intermittent welding program, can choose continuous or in- termittent welding. when the height of the work piece is greater than 4O mm, it can be mounted and stably moved for welding. It can handle various materials such as flat steel, square steel, ball flat steel, T-shaped profiles, L-shaped steel, etc. Support quick clamping operation and elastic adjustment of clamping force.

FY-QB-06- I is a welding equipment that uses a rack and pinion drive to travel on track. It is widely used in horizontal butt welding and vertical butt welding, and is especially suitable for medium and thick plate welding. By adjusting the position and angle of the welding gun, fillet welding, horizontal welding and over head welding can also be performed. The trolley body,swing device and control panel are integrated into one, and can be welded while walking on the track. The track is attracted to the work piece with powerful magnets, making it easy to install and disassemble.

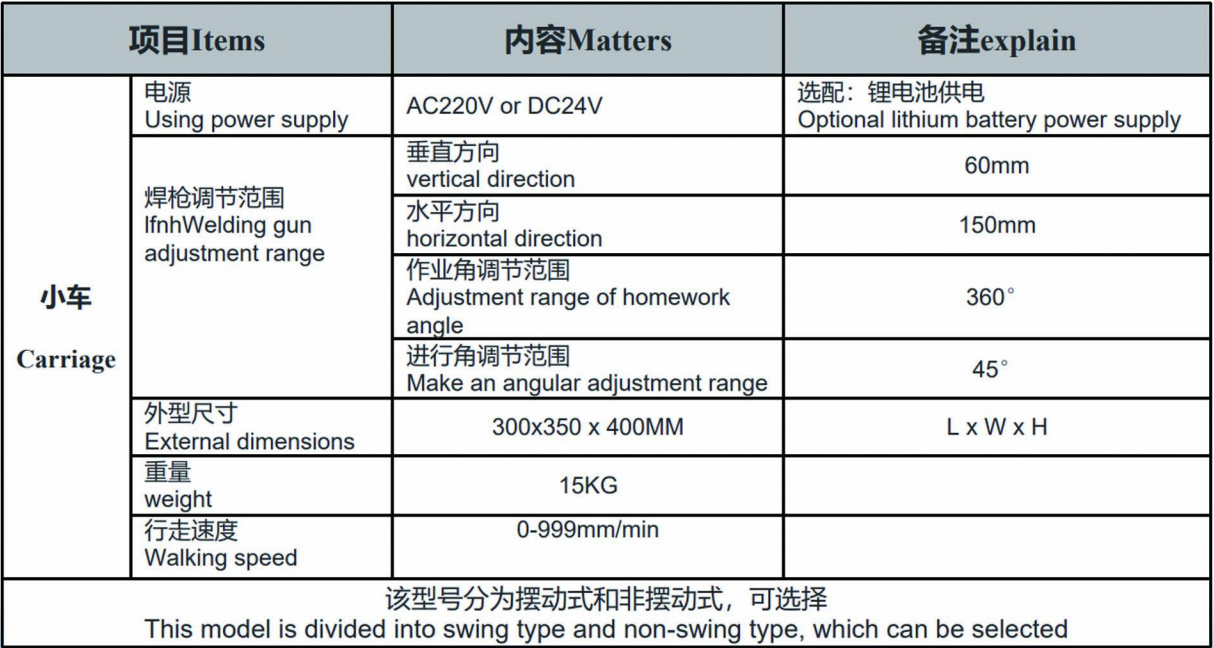

The FY-QB-06 is a horizontal orbital welding equipment using gearshift drive. By adjusting the welding fixture and angle, othermethods can also be welded in other ways, such as horizontalwelding and vertical welding. The car walking body and thecontrol panel are integrat-ed into one, which can be welded onthe track. The track is sucked on the workpiece with magnets.and it is conve-nient to install and disassemble. Small size, lightweight, very convenient to move and use. The track can beex-tended infinitely.

1. The FY-8SSB car is a welded automatic device suitable for intermittent or continuous horizontal welding structure. 2. The actual distance display of the welding/non -welding interval,adjust the distance between the switch to the up and down, set the distance between the welding and non -welding, the distance between the welding and the non -welding is controlled by the motorand the controller. The size of the size is high., Run evenly, can achieve precision welding. The car walking speed in non -welding state is maximum (99omm/min).★ Note: The self-protection circuit switch of the welded machine when setting and welding must be closed .–OFF. 3. There is a arc collection device, the adjustment range of the collection time is 0-5s. 4. Install a permanent magnet to avoid the phenomenon of the car from getting out of the welding line.

The FY-QB-08 pipeline ring seam welding machine is fixed with atube, and the welding car crawling inde-pendently to achieve the pipeline welding. The welding process uses high-efficiency, low cost Co2 gas protection welding (GMAw), and welding wire optional refreshment wire or drug cores Welding wire, the entire welding is more rational, and the operation is more humane.Ads to the pipeline by magnetic force, and automatically craw-lalong the welding channel during welding. It is very convenient to install, use and remove quickly. The welding of stainless steel or pipes that cannot be magnetically adsorbed requires another track, and the track specifi- cations are customized according to the need for welding.

1.FY-8SSWT-H side suction hanging automatic welding trolley. 2. The swing speed, swing amplitude, center position and left and right dwell time can be adjusted to suit vari-ous specifications of welds. 3. Installed with permanent strong magnets to prevent the trolley from falling off during welding. 4. The walking surface height meets 12oMM and can work normally. lt is suitable for welding l-beam, T-beam and H-beam.

1. FY-4B is a side suction horizontal angle welding automatic device. 2.Equipped with permanent strong magnets to prevent the car from falling off during welding. 3.Suitable for corner welding ofl-beams, T-shaped parts, or 7-shaped parts, it has a small volume, light weight, no track and is easy to move. In addition, it can move on in- clined surfaces and narrow spaces. 4. The driving wheel itself is designed to face the welding area, and the bottom of the car is equipped with a friction limit wheel, which can better ensure that the car moves along the welding line. The side suction installation method is suitable for certain spe-cial welding forms.
