All-position welding cart

The pipe fixation and welded car walk through the way to achieve automatic welding (5G welding) in the pipeline. The welding process uses high -efficiency, low -cost carbon dioxide gas or hybrid gas protection (80%milogenic+20%carbon dioxide). Advantages of full -position pipeline welding: wireless remote control, program can be preset or at any time, the welding parameters can be set at any time, and the parameters are stored for later calls. Automatically identify the welding position during welding. The equipment itself has a orientation sensor, which can automatically identify the welding angle. The machine can match the appropriate current voltage and walk or swing parameters according to different positions at 1 and 12 points. easy to use. 1. Applicable work conditions: various long -volume pipelines, thermal pipelines, buried land pipes or craft pipelines and other on -site welding ports. 2. Welding material: carbon steel, stainless steel, alloy steel, low -temperature steel, etc. 3.Applicable welds: Pipe diameter can be more than 15o mm or more, and the wall thickness is greater than 5 mm. It can be applicable. Thick wall tube can use multi -layer and multi -channel welding. 4. Welded car: The design is light and easy to carry, and the permanent magnet adsorption is especially suitable for welding the entire pipeline at the construction site. 5. Wireless remote control: Wireless remote control preset welding parameters. In the welding work, it can be fine -tuned in real time according to the working conditions. The operation is simple and the labor intensity is low. 6. Welding efficiency: Fast speed, high production efficiency, and handmade arc welding can be increased by about 3-4 times.

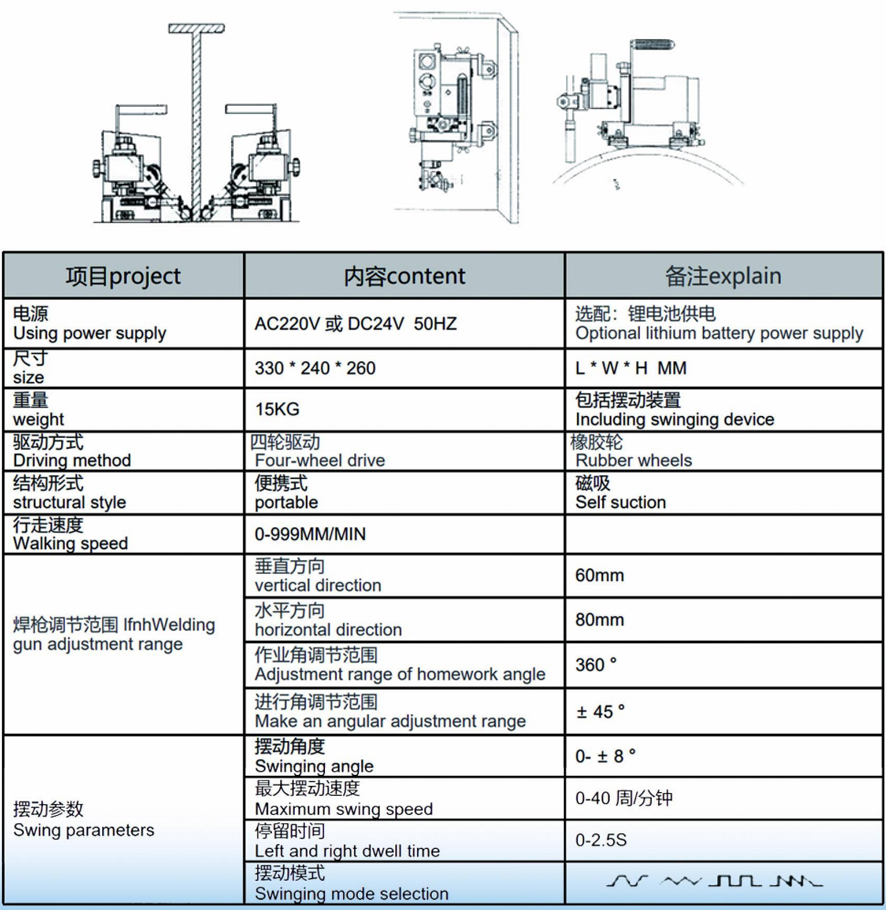

1. This welding car is a multi -function welding machine that should be welded in the plane corner, vertical angle welding, flat docking standing docking and supers truc- ture. 2. The swing speed, swing range, center position, and left and right stays can be adjusted, suitable for various specifications of welding channels. 3.Small volume, light weight, convenient installation, non -skilled workers can also be welded. 4. Install a permanent magnet. Welding lines can be avoided when welding. 5.Configure soft and hard orbit can satisfy vertical walking, side -in -side walking, curved walking and welding.

1. FY-6SS-II is a single-sided double-gun horizontal fillet weldingautomatic device. 2. Two welding guns are installed at a certain distance,with thefunction of welding gun selection, which can beused for single-gunwelding or dual-gun welding at the same time. when welding thickworkpieces, dual-gun welding is selected at the same time, which isefficient and economical, and workers can operate multiple de-vices atthe same time. 3.A guide mechanism is installed to avoid the welding gun andwelding line from separating during welding. 4.Easy to move and operate, even unskilled workers can operate it.

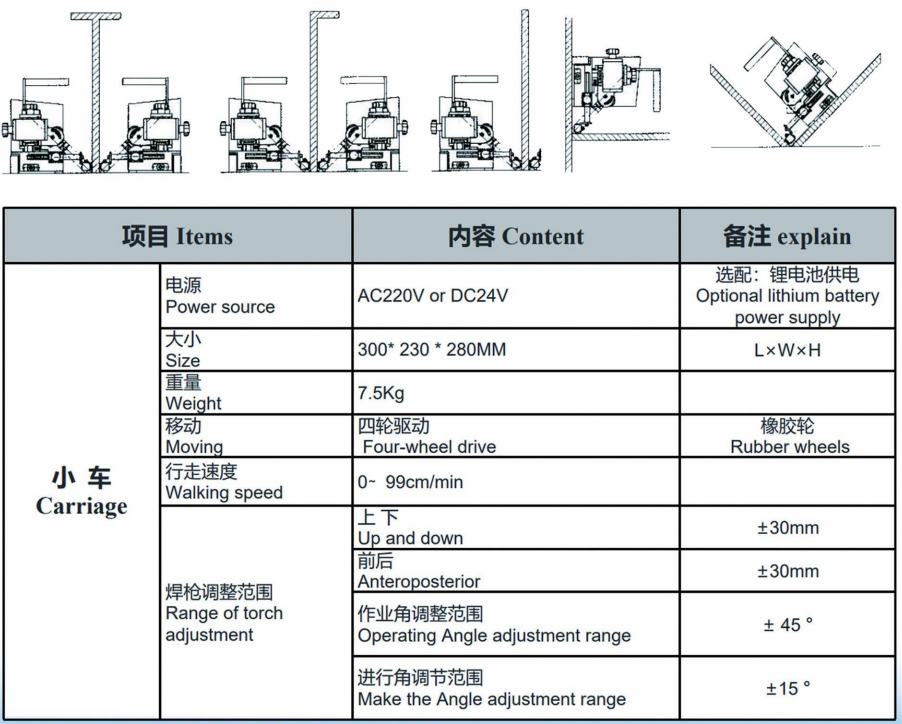

(1)One machine holds two welding guns and performs double.sided fillet welding in one pass (2)with limit stop function, multiple units can be oper-atedsimultaneously (3)Suitable for welding l-beams, stiffener plates, and T-beam work pieces (4)when welding on both sides simultaneously, defor-mationca used by general single-sided welding can be avoided. (5)Easy to move and operate, even unskilled workers can perform welding

1. FY-8ssw is a swing type automatic welding device,which issuitable for welding various fillet welds. A wider weld can beobtained in one welding. 2.The swing speed, swing amplitude, center position and left andright dwell time can be adjusted to suit vari-ous specifications ofwelds. 3.Small size, light weight, easy to install and move, even unskilledworkers can perform welding.4.Permanent magnets are installed to avoid welding linedetachment during welding.

1)The FY-6S car is an automatic welding device suitable forhorizontal angle welding. 2)Welding in the left and right directions can be achieved. The ends of the car are installed with a sense of stop switch. After the welding is over, the car can be automatically stopped, which is convenient for one worker to manipulate multiple equipment at the same time. 3)Small volume, light weight, and convenient movement and installation. Non -skilled workers can also be welded. 4)Install a permanent magnet to avoid the phenomenon of the carfrom getting out of the welding line.5)Welded on the vertical surface
